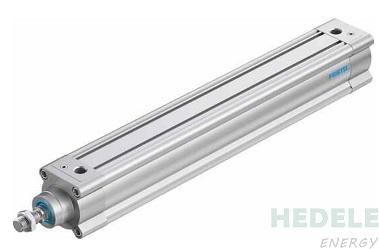

DSBC-63-400-PPVA-N3

ZLL(ZXG)

DSBC-63-400-PPVA-N3

delivery time:3-4weeks

• Stroke400 mm
• Piston diameter63 mm
• Piston rod threadM16x1.5
• CushioningPneumatic cushioning, adjustable at both ends
• Mounting positionAny
• Conforms to standardISO 15552
• Piston rod endExternal thread
• Structural designPiston Piston rod Profile barrel
• Position sensingFor proximity sensor
• Symbol00991235
• VariantsPiston rod at one end
• Operating pressure0.04 MPa ... 1.2 MPa
• Operating pressure0.4 bar ... 12 bar
• Mode of operationDouble-acting
• Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
• Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
• Corrosion resistance class (CRC)2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Ambient temperature-20 °C ... 80 °C
• Impact energy in the end positions1.3 J
• Cushioning length22 mm
• Theoretical force at 6 bar, retracting1682 N
• Theoretical force at 6 bar, advancing1870 N
