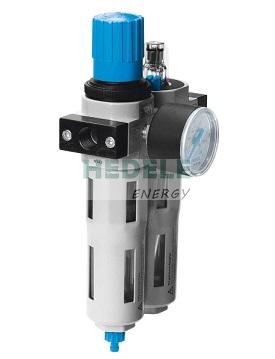

8002358-FRC-3/4-D-5M-MAXI-MPA
1
  • 8002358-FRC-3/4-D-5M-MAXI-MPA
2
views: 492

8002358-FRC-3/4-D-5M-MAXI-MPA

Rate:
0.0000/5

( 0 reviews )

Item NO.: V030842 MOQ: 0
Weight:    2.39kgs
Package Size:
 Price:
$202.00
 Qty:
      $202.00
 Shipping:   Calculate Shipping Cost

YMX

Delivery time: 3-4 weeks


Service unit


Technical Data

  • SizeMaxi
  • SeriesD
  • Actuator lockRotary knob with detent
  • Mounting positionVertical +/-5°
  • Condensate drainManually rotating
  • DesignFilter regulator with pressure gauge Proportional standard mist lubricator
  • Max. condensate volume80 ml
  • Grade of filtration5 µm
  • Bowl guardMetal bowl guard
  • Symbol00991761
  • Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge
  • Operating pressure1 bar ... 16 bar
  • Pressure regulation range0.5 bar ... 12 bar
  • Max. pressure hysteresis0.4 bar
  • Standard nominal flow rate7000 l/min
  • Operating mediumCompressed air to ISO 8573-1:2010 [-:9:-] Inert gases
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Air purity class at outputCompressed air to ISO 8573-1:2010 [6:8:-] Inert gases
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Product weight2390 g
  • Type of mountingIn-line installation With accessories
  • Pneumatic connection, port 1G3/4
  • Pneumatic connection, port 2G3/4
  • Note on materialsRoHS-compliant
  • Material housingDie-cast zinc
  • Material bowlPC
