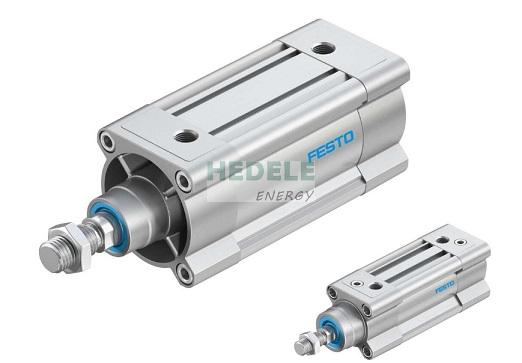

VariantsFor unlubricated operation
Clamping unit attached
End-position locking at both ends
End-position locking with piston rod in retracted position
End-position locking with piston rod in advanced position
Increased chemical resistance
Bellows on bearing cap
Hard scraper
Extended male piston rod thread
Piston rod with female thread
Extended piston rod
Low friction for balancer applications
Metal scraper
With protection against rotation
Uniform, slow movement
Low friction
Through piston rod
Heat-resistant seals max. 120°C
Sensor slots on 3 profile sides
Temperature range 0 to 150°C
Temperature range -40 to 80°C
Piston rod at one end
Mode of operation clamping unitRetracting
Advancing
Static
Released through compressed air
Frictional clamping with spring force
Static holding force of clamping unit5000 N
Axial backlash clamping unit0.8 mm
Clamping unit release pressure0.3 MPa
Clamping unit release pressure3 bar
Mode of operation end-position lockingPositive interlocking with stop cylinder
Released through compressed air
Static holding force of end-position locking5000 N
Axial backlash end-position locking1.5 mm
Unlocking pressure0.15 MPa
Unlocking pressure1.5 bar
Locking pressure0.05 MPa
Locking pressure0.5 bar
Operating pressure0.005 MPa ... 1.2 MPa
Operating pressure0.05 bar ... 12 bar
Mode of operationDouble-acting
CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)
CE marking (see declaration of conformity)To UK EX instructions
Explosion protectionZone 1 (ATEX)
Zone 1 (UKEX)
Zone 2 (ATEX)
Zone 21 (ATEX)
Zone 21 (UKEX)
Zone 22 (ATEX)
ATEX category gasII 2G
ATEX category dustII 2D
Explosion ignition protection type for gasEx h IIC T4 Gb
Explosion ignition protection type for dustEx h IIIC T120°C Db
Explosion ambient temperature-20°C <= Ta <= +60°C
Explosion protection certification outside the EUEPL Db (GB)
EPL Gb (GB)
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
3 - high corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
VDMA24364 zone III
Ambient temperature-40 °C ... 150 °C
Impact energy in end positions1.25 J ... 2.5 J
Cushioning length0 mm ... 31 mm
Max. torque for protection against torsion3 Nm
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke4418 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke4418 N ... 4712 N
Additional weight per piston rod extension of 10 mm39 g
Additional weight per piston rod thread extension of 10 mm22 g
Type of mountingEither:
Via female thread
With accessories
Pneumatic connectionG1/2
Note on materialsRoHS-compliant
Material coverDie-cast aluminium, coated
Material springSpring steel
High-alloy stainless steel
Clamping unit housing materialAnodised wrought aluminium alloy
Material housing end-position lockingAnodised wrought aluminium alloy
Material piston sealFPM
HNBR
TPE-U(PU)
Material clamping jaws clamping unitBrass
Piston clamping unit materialPOM
Material piston end-position lockingHardened steel
Material pistonWrought aluminium alloy
Material piston rodHigh-alloy stainless steel, hard chrome-plated
High-alloy steel
High-alloy stainless steel
Material piston rod wiperFPM
HNBR
PE
TPE-U(PU)
Buffer seal materialFPM
TPE-U(PU)
Cushioning piston materialAluminium
POM
Material cylinder barrelSmooth-anodised wrought aluminium alloy
