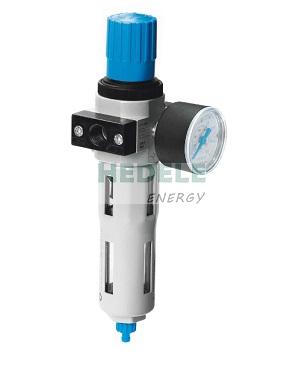

filter regulator

Technical Data

• SizeMaxi
• SeriesD
• Actuator lockRotary knob with detent
• Mounting positionVertical +/-5°
• Grade of filtration5 µm
• Condensate drainFully automatic
• DesignFilter regulator with pressure gauge
• Max. condensate volume80 ml
• Bowl guardMetal bowl guard
• Symbol00991587
• Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge
• Operating pressure2 bar ... 12 bar
• Pressure regulation range0.5 bar ... 12 bar
• Max. pressure hysteresis0.4 bar
• Standard nominal flow rate7600 l/min
• Operating mediumCompressed air to ISO 8573-1:2010 [7:9:-] Inert gases
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Storage temperature-10 °C ... 60 °C
• Air purity class at outputCompressed air to ISO 8573-1:2010 [6:8:4] Inert gases
• Media temperature5 °C ... 60 °C
• Ambient temperature5 °C ... 60 °C
• Product weight1370 g
• Type of mountingEither: In-line installation With accessories
• Pneumatic connection, port 1G3/4
• Pneumatic connection, port 2G3/4
• Note on materialsRoHS-compliant
• Material housingDie-cast zinc
• Material bowlPC
