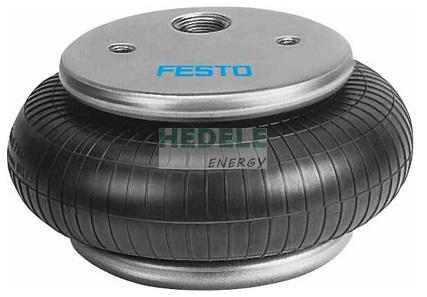

EB-215-80 FESTO 36488

 ZLL(HJY)

EB-215-80 FESTO 36488

delivery time:3-4weeks

• Size215
• Required installation diameter230 mm
• Stroke80 mm
• Max. extended height135 mm
• Max. angle of inclination20 deg
• Max. offset10 mm
• Min. installation height50 mm
• Mode of operationSingle-acting
• Symbol00991205
• Operating pressure0 bar ... 8 bar
• Operating mediumCompressed air to ISO 8573-1:2010 [-:-:4]
• Note on operating and pilot mediumLubricated operation not possible
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Ambient temperature-40 °C ... 70 °C
• Reset force200 N
• Product weight2000 g
• Type of mountingVia female thread
• Pneumatic connectionG3/4
• Note on materialsRoHS-compliant
• Material bellowsNR/BR
• Material housingSteel Galvanised
