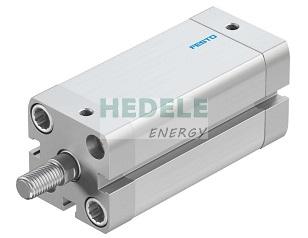

ADN-25-50-A-P-A 536258

ZLL(ZQC)

ADN-25-50-A-P-A    536258

delivery time:2-3weeks

• Stroke50 mm
• Piston diameter25 mm
• Piston rod threadM8
• CushioningElastic cushioning rings/pads at both ends
• Mounting positionAny
• Conforms to standardISO 21287
• Piston rod endExternal thread
• Position sensingFor proximity sensor
• Symbol00991217
• VariantsPiston rod at one end
• Operating pressure0.06 MPa ... 1 MPa
• Operating pressure0.6 bar ... 10 bar
• Mode of operationDouble-acting
• Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
• Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
• Corrosion resistance class (CRC)2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Cleanroom classClass 6 according to ISO 14644-1
• Ambient temperature-20 °C ... 80 °C
• Impact energy in the end positions0.3 J
• Theoretical force at 6 bar, retracting247 N
• Theoretical force at 6 bar, advancing295 N
