ADN-63-80-I-P-A

ZLL(YMX)

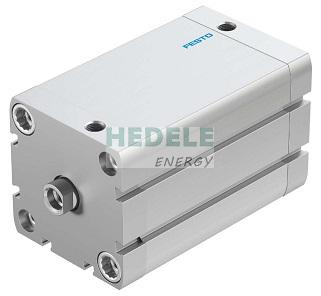

ADN-63-80-I-P-A  536350

delivery time:3-4weeks

• Stroke80 mm
• Piston diameter63 mm
• Piston rod threadM10
• CushioningElastic cushioning rings/plates at both ends
• Mounting positionoptional
• Conforms to standardISO 21287
• Piston-rod endFemale thread
• Position detectionVia proximity switch
• Symbol00991217
• VariantsPiston rod at one end
• Operating pressure0.06 MPa ... 1 MPa
• Operating pressure0.6 bar ... 10 bar
• Mode of operationDouble-acting
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Ambient temperature-20 °C ... 80 °C
• Impact energy in end positions1.3 J
• Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke1750 N
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke1870 N
• Moving mass for 0 mm stroke180 g
• Additional moving mass per 10 mm stroke16 g
• Basic weight for 0 mm stroke722 g
• Additional weight per 10 mm stroke59 g
• Type of mountingEither: With through-hole Via female thread With accessories
• Pneumatic connectionG1/8
• Note on materialsRoHS-compliant
• Material collar screwsSteel
• Material coverAnodised wrought aluminium alloy
• Material sealsTPE-U(PUR)
• Material piston rodHigh-alloy steel
• Material cylinder barrelSmooth-anodised wrought aluminium alloy
