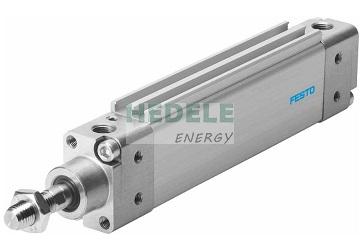

DZH-16-200-PPV-A 151152

ZLL(ZXG)

DZH-16-200-PPV-A   151152

delivery time:8weeks

• Stroke200 mm
• Piston diameter16 mm Equivalent diameter
• Max. angle of rotation of the piston rod +/-3.1 deg
• CushioningPneumatic cushioning, adjustable at both ends
• Mounting positionAny
• Mode of operationDouble-acting
• Structural designPiston Piston rod
• Position sensingFor proximity sensor
• Symbol00991235
• Protection against torsion/guideOval piston
• Operating pressure0.1 MPa ... 1 MPa
• Operating pressure1 bar ... 10 bar
• Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
• Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
• Corrosion resistance class (CRC)2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B2-L
• Ambient temperature-20 °C ... 80 °C
• Cushioning length14 mm
• Max. torque for protection against rotation0.5 Nm
• Theoretical force at 6 bar, retracting104 N
• Theoretical force at 6 bar, advancing121 N
