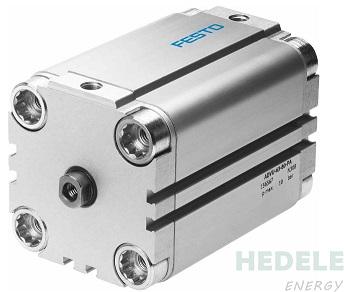

ADVU-32-25-P-A
delivery time:3-4weeks
-
Stroke25 mm
-
Piston diameter32 mm
-
CushioningElastic cushioning rings/plates at both ends
-
Mounting positionoptional
-
Mode of operationDouble-acting
-
Piston-rod endFemale thread
-
DesignPiston
Piston rod
-
Position detectionVia proximity switch
-
Symbol00991217
-
VariantsPiston rod at one end
-
Operating pressure0.08 MPa ... 1 MPa
-
Operating pressure0.8 bar ... 10 bar
-
Operating pressure11.6 psi ... 145 psi
-
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
-
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
-
Corrosion resistance class CRC2 - Moderate corrosion stress
-
LABS (PWIS) conformityVDMA24364-B1/B2-L
-
Ambient temperature-20 °C ... 80 °C
-
Impact energy in end positions0.4 J
-
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke415 N
-
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke483 N
