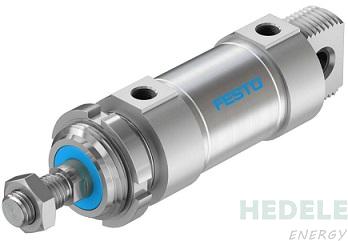

193994 DSNU-50-50-P-A

ZLL(ZXG)

193994 DSNU-50-50-P-A

delivery time:6-8weeks

• Stroke1 mm ... 500 mm
• Piston diameter50 mm
• CushioningElastic cushioning rings/pads at both ends Self-adjusting pneumatic end-position cushioning Pneumatic cushioning, adjustable at both ends
• Mounting positionAny
• Structural designPiston Piston rod Cylinder barrel
• Position sensingFor proximity sensor
• VariantsExtended external thread piston rod Internal thread on piston rod Special thread on piston rod Piston rod with external thread shortened at one end Extended piston rod Clamping unit on the piston rod Axial supply port With direct mounting Lateral supply port Metal scraper With anti-twist protection High corrosion protection Dust protection Uniform, slow movement Low friction Through piston rod Heat-resistant seals max. 120°C Piston rod at one end
• Protection against torsion/guideSquare piston rod
• Operating pressure0.1 MPa ... 1 MPa
• Operating pressure1 bar ... 10 bar
• Mode of operationDouble-acting
• CE marking (see declaration of conformity)as per EU explosion protection directive (ATEX)
• UKCA marking (see declaration of conformity)acc. to UK EX instructions
• Explosion protection certification outside the EUEPL Db (GB) EPL Gb (GB)
• Explosion prevention and protectionZone 1 (ATEX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (UKEX) Zone 22 (ATEX)
• ATEX category gasII 2G
• ATEX category for dustII 2D
• Type of ignition protection for gasEx h IIC T4 Gb
• Type of (ignition) protection for dustEx h IIIC T120°C Db
• Explosive ambient temperature-20°C <= Ta <= +60°C
• Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
• Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
• Corrosion resistance class (CRC)2 - Moderate corrosion stress 3 - High corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L VDMA24364 zone III
• Ambient temperature-20 °C ... 120 °C
• Cushioning length20 mm
