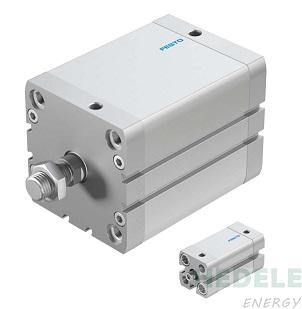

ADN-25-25-I-P-A-Q-S2

ZLL(ZXG)

ADN-25-25-I-P-A-Q-S2

delivery time:6-8weeks

• Stroke1 mm ... 300 mm
• Piston diameter25 mm
• CushioningElastic cushioning rings/pads at both ends Self-adjusting pneumatic end-position cushioning
• Mounting positionAny
• Conforms to standardISO 21287
• Structural designPiston Piston rod Profile barrel
• Position sensingFor proximity sensor
• VariantsEX protection approval (ATEX) Metals with copper, zinc or nickel as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils. Improved running performance Extended external thread piston rod Special thread on piston rod Extended piston rod With anti-twist protection High corrosion protection Dust protection Reinforced piston rod Uniform, slow movement Low friction Through piston rod Through, hollow piston rod Heat-resistant seals max. 120°C Laser etched rating plate Temperature range -40 to 80°C Piston rod at one end
• Operating pressure0.06 MPa ... 1 MPa
• Operating pressure0.6 bar ... 10 bar
• Mode of operationDouble-acting
• CE marking (see declaration of conformity)as per EU explosion protection directive (ATEX)
• UKCA marking (see declaration of conformity)acc. to UK EX instructions
• Explosion prevention and protectionZone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
• ATEX category gasII 2G
• ATEX category for dustII 2D
• Type of ignition protection for gasEx h IIC T4 Gb
• Type of (ignition) protection for dustEx h IIIC T120°C Db
• Explosive ambient temperature-20°C <= Ta <= +60°C
• Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
• Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
• Corrosion resistance class (CRC)0 - No corrosion stress 2 - Moderate corrosion stress 3 - High corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L VDMA24364 zone III
