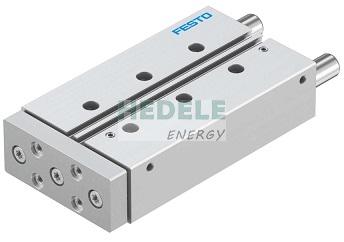

DFM-20-100-P-A-GF

ZLL(YMX)

DFM-20-100-P-A-GF

delivery time:3-4weeks

• Distance of centre of gravity of payload to yoke plate xs50 mm
• Stroke100 mm
• Piston diameter20 mm
• Drive unit operating modeYoke
• CushioningElastic cushioning rings/pads at both ends
• Mounting positionAny
• GuideSliding guide
• Structural designGuide
• Position sensingFor proximity sensor
• Symbol00991737
• Operating pressure0.2 MPa ... 1 MPa
• Operating pressure2 bar ... 10 bar
• Max. speed0.8 m/s
• Mode of operationDouble-acting
• Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
• Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
• Corrosion resistance class (CRC)1 - Low corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Ambient temperature-20 °C ... 80 °C
• Impact energy in the end positions0.2 J
• Max. force Fy709.3 N
• Max. force Fy static709.3 N
• Max. force Fz709.3 N
• Max. force Fz static709.3 N
• Max. torque Mx20.57 Nm
• Max. static moment Mx20.57 Nm
• Max. torque My16.31 Nm
• Max. static moment My16.31 Nm
• Max. torque Mz16.31 Nm
• Max. static moment Mz16.31 Nm
• Max. permissible torque load Mx as a function of the stroke2.66 Nm
• Max. payload as a function of the stroke at defined distance xs77 N
• Theoretical force at 6 bar, retracting141 N
• Theoretical force at 6 bar, advancing188 N
• Moving mass732 g
