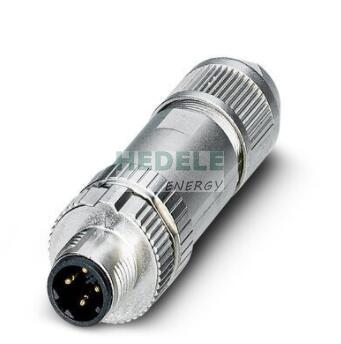

ZZC SACC-M12MSD-4PL SH PN - Data connector 1424682
|
ermination
|
Spring-Cage
|
|
Fastening Type
|
Push-Twist
|
|
Orientation
|
D
|
|
Primary Material
|
Metal
|
|
Shell Material
|
Zinc Die Cast
|
|
Shell Finish
|
Nickel
|
|
Contact Finish - Mating
|
Gold
|
|
Color
|
Silver
|
|
Ingress Protection
|
IP65/IP67 - Dust Tight, Water Resistant, Waterproof
|
|
Material Flammability Rating
|
UL94 V-0
|
|
Features
|
Backshell
|
|
Shielding
|
|
|
Current Rating (Amps)
|
4A
|
|
Voltage Rating
|
48VAC, 60VDC
|
|
Cable Opening
|
0.157" ~ 0.315" (4.00mm ~ 8.00mm)
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Backshell Material, Plating
|
Zinc Die Cast, Nickel
|
|
Contact Material
|
