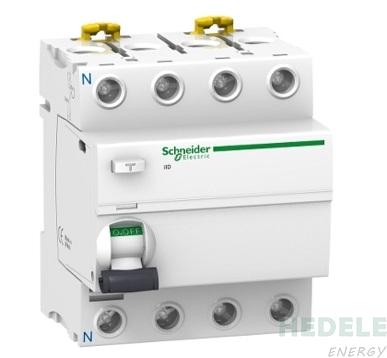

A9R12491
delivery time:3-4months
Range
Acti9
product name
Acti9 iID
Product or component type
Residual current circuit breaker (RCCB)
Device short name
IID
Poles description
4P
Neutral position
Left
[In] rated current
100 A
Network type
AC
Earth-leakage sensitivity
100 mA
earth-leakage protection time delay
Instantaneous
earth-leakage protection class
Type AC
Device location in system
Outgoer
Network frequency
50/60 Hz
[Ue] rated operational voltage
380...415 V AC 50/60 Hz
residual current tripping technology
Voltage independent
Rated breaking and making capacity
Idm 1500 A
Im 1500 A
Rated conditional short-circuit current
10 kA
[Ui] rated insulation voltage
500 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage
6 kV
Contact position indicator
Yes
Control type
Toggle
Mounting mode
Clip-on
mounting support
DIN rail
9 mm pitches
8
