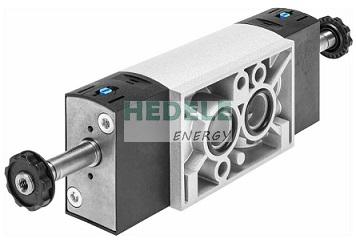

VSNC-F-B52-D-G14-F8

ZLL(YMX)

VSNC-F-B52-D-G14-F8

delivery time:1-2weeks

• Valve function5/2, bistable
• Actuation typeElectrical
• Width32 mm
• Standard nominal flow rate1350 l/min
• Pneumatic working portNAMUR connection diagram
• Operating voltageVia solenoid coil, to be ordered separately
• Operating pressure0.15 MPa ... 1 MPa
• Operating pressure1.5 bar ... 10 bar
• Structural designPiston gate valve
• Certificationc UL us - Recognized (OL)
• Certificate issuing authorityDNVGL-TAA000011J
• Exhaust air functionWith flow control option
• Sealing principleSoft
• Mounting positionAny
• Conforms to standardVDI/VDE 3845 (NAMUR)
• Manual overrideDetenting Non-detenting
• Type of controlPilot-controlled
• Pilot air supply portInternal
• Flow directionNon-reversible
• Symbol00991005
• LapOverlap
• Signal status displayWith accessories
• b-value0.4
• C value5.6 l/sbar
• Changeover time11 ms
• Duty cycle100%
• Coil characteristicsSee solenoid coil, to be ordered separately
• Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
• Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
• Corrosion resistance class (CRC)2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B2-L
• Temperature of medium-20 °C ... 60 °C
• Ambient temperature-20 °C ... 60 °C
