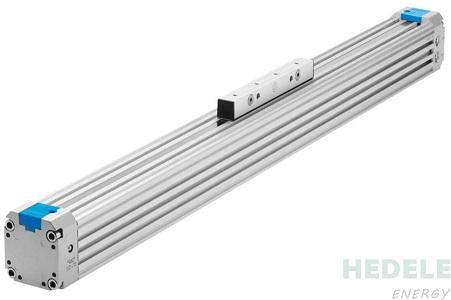

DGPL-25-150-PPV-A-B-KF-SH
delivery time:6-8weeks
-
Stroke10 mm ... 3000 mm
-
Piston diameter25 mm
-
CushioningPneumatic cushioning, adjustable at both ends
Pneumatic shock absorber, hard characteristic curve
-
Mounting positionAny
-
GuideSliding guide
Basic guide
Recirculating ball bearing guide
Heavy-duty guide
-
Driver principlePositive locking (slot)
-
Position sensingFor proximity sensor
With linear potentiometer attached
With integrated linear potentiometer
-
VariantsSupply port at both ends
Protected version
Standard slide
Extended slide
Rear clamping unit
Clamping unit, underneath
Front clamping unit
-
Operating pressure0.2 MPa ... 0.8 MPa
-
Operating pressure2 bar ... 8 bar
-
Mode of operationDouble-acting
-
CE marking (see declaration of conformity)as per EU explosion protection directive (ATEX)
-
UKCA marking (see declaration of conformity)acc. to UK EX instructions
-
Explosion prevention and protectionZone 1 (ATEX)
Zone 2 (ATEX)
-
ATEX category gasII 2G
-
Type of ignition protection for gasEx h IIC T4 Gb X
-
Explosive ambient temperature-10°C <= Ta <= +60°C
-
Operating mediumCompressed air as per ISO 8573-1:2010 [7:-:-]
-
Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
-
Corrosion resistance class (CRC)0 - No corrosion stress
1 - Low corrosion stress
2 - Moderate corrosion stress
-
LABS (PWIS) conformityVDMA24364-B1/B2-L
-
Degree of protectionIP65
-
Ambient temperature-10 °C ... 60 °C
-
Cushioning length18 mm
-
Theoretical force at 6 bar, retracting295 N
-
Theoretical force at 6 bar, advancing295 N
-
Alternative connectionsSee product drawing
-
Pneumatic connectionG1/8
-
Cover materialCast aluminum
Coated
-
Seals materialNBR
TPE-U(PU)
-
Housing materialAluminum
Anodized
