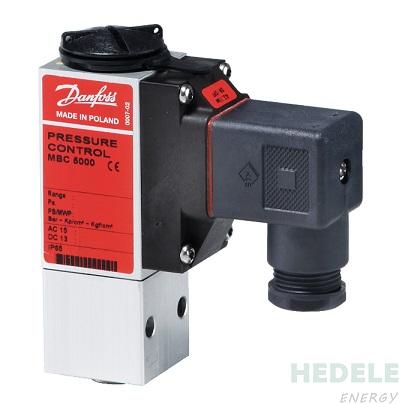

MBC 5000，061B201266，Pressure switch
delivery time：in stock
Product details
Gross weight
0.28 kg
Net weight
0.19 kg
EAN
5702428366618
Alarm Signal
Falling
Ambient temperature range [°C] [Max]
85 °C
Ambient temperature range [°C] [Min]
-40 °C
Ambient temperature range [°F] [Max]
185 °F
Ambient temperature range [°F] [Min]
-40 °F
Approval
CCC
CE
EAC
LLC CDC EURO-TYSK
LVD
RoHS
RoHS China
UKCA
Burst pressure [bar]
30 bar
Contact function
SPDT
Contact rating
AC15=0.5 A, 250 V
DC13=12 W, 125 V
Diff.@Max. range setting [bar]
0.45 bar
Diff.@Min. range setting [bar]
0.3 bar
Electrical conn. Male/Female
Female
Electrical connection
DIN-plug
Electrical connection size
Pg 11
Electrical connection standard
EN 175301-803-A
Electrical spec. standard
EN 60947-5
Enclosure rating IP
IP65
Equipment
<NULL>
Factory setting [bar]
0.5 bar
Factory setting [MPa]
0.05 MPa
Max. test pressure [bar] Pe
15 bar
Max. test pressure [psig]
218 psig
Max. Working Pressure [bar]
15 bar
Max. Working Pressure [psig]
220 psig
Packing format
Multi pack
Pressure connection size
1/4
Pressure connection standard
ISO 228-1
Pressure connection type
G
Pressure Male/Female
Female
Pressure range category
Low pressure
Pressure sensing element
Bellows
Product accessories
Switches accessories
Product description
Pressure Switch
Product group
Switches and thermostats
Product name
Pressure switch
Quantity per packing format
32 pc
REACH Candidate List substances >0.1%
Lead (CAS no. 7439-92-1)
Regulation range [bar] Pe [Max]
1 bar
Regulation range [bar] Pe [Min]
-0.2 bar
Regulation range [MPa] Pe [Max]
0.1 MPa
Regulation range [MPa] Pe [Min]
-0.02 MPa
Reset function
Auto
Serviceable
No
Specification key
1011-1CB04
Type
MBC 5000
