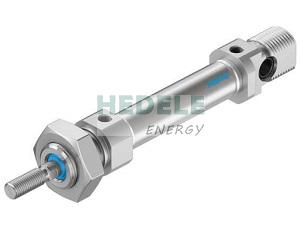

DSNU-12-25-P-A
delivery time:4 weeks
-
Stroke25 mm
-
Piston diameter12 mm
-
Piston rod threadM6
-
CushioningElastic cushioning rings/pads at both ends
-
Mounting positionAny
-
Conforms to standardCETOP RP 52 P
ISO 6432
-
Piston rod endExternal thread
-
Structural designPiston
Piston rod
Cylinder barrel
-
Position sensingFor proximity sensor
-
Symbol00991217
-
VariantsPiston rod at one end
-
Operating pressure0.15 MPa ... 1 MPa
-
Operating pressure1.5 bar ... 10 bar
-
Mode of operationDouble-acting
-
Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
-
Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
-
Corrosion resistance class (CRC)2 - Moderate corrosion stress
-
LABS (PWIS) conformityVDMA24364-B1/B2-L
-
Cleanroom classClass 6 according to ISO 14644-1
-
Ambient temperature-20 °C ... 80 °C
-
Impact energy in the end positions0.07 J
-
Theoretical force at 6 bar, retracting50.9 N
-
Theoretical force at 6 bar, advancing67.9 N
-
Moving mass at 0 mm stroke18.5 g
-
Additional moving mass per 10 mm stroke2 g
-
Basic weight with 0 mm stroke75 g
-
Additional weight per 10 mm stroke4 g
-
Type of mountingWith accessories
-
Pneumatic connectionM5
-
Note on materialsRoHS-compliant
-
Cover materialWrought aluminum alloy
Plain anodized
-
Seals materialNBR
TPE-U(PU)
-
Piston rod materialHigh-alloy stainless steel
-
Material of cylinder barrelHigh-alloy stainless steel
