ZLL(YMX)

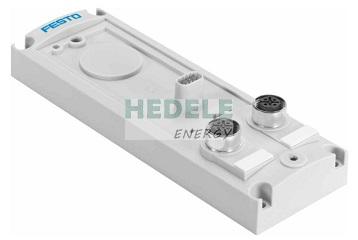

CAPC-F1-E-M12
delivery time:12-16weeks
-
Dimensions W x L x H50 mm x 148 mm x 28 mm
-
Fieldbus interface2x M12 bushing 5-pin
-
DC operating voltage range18 V ... 30 V
-
Max. power supply4 A
-
Nominal operating voltage DC24 V
-
Certificationc UL us - Listed (OL)
-
Corrosion resistance class (CRC)2 - Moderate corrosion stress
-
Storage temperature-20 °C ... 70 °C
-
LABS (PWIS) conformityVDMA24364-B2-L
-
Degree of protectionIP65
IP67
-
Ambient temperature-5 °C ... 50 °C
-
Product weight85 g
-
Cable length20 m
-
Note on materialsRoHS-compliant
-
Housing materialPA
