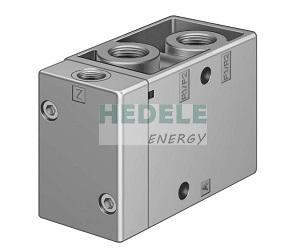

VL/O-3-1/2

ZLL(YMX)

VL/O-3-1/2

delivery time:3-4weeks

• Valve function3/2, open/closed, monostable
• Actuation typePneumatic
• Width52 mm
• Standard nominal flow rate3700 l/min
• Pneumatic working portG1/2
• Operating pressure-0.095 MPa ... 1 MPa
• Operating pressure-0.95 bar ... 10 bar
• Structural designPlate seat
• Reset methodMechanical spring
• Nominal width14 mm
• Width dimension69 mm
• Exhaust air functionWith flow control option
• Sealing principleSoft
• Mounting positionAny
• Manual overrideNone
• Type of controlDirect
• Pilot air supply portExternal
• Flow directionReversible
• Symbol00991030
• LapUnderlap
• Pilot pressure MPa0.1 MPa ... 1 MPa
• Pilot pressure1 bar ... 10 bar
• b-value0.3
• Switching time off30 ms
• On switching time17 ms
• Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
• Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
• Corrosion resistance class (CRC)1 - Low corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Storage temperature-20 °C ... 60 °C
• Temperature of medium-10 °C ... 60 °C
• Pilot mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
• Ambient temperature-10 °C ... 60 °C
