ZLL(ZXG)

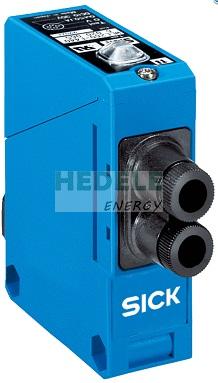

WLL260-R240
delivery time:6-8weeks
| Supply voltage |
12 V DC ... 240 V DC 1) 24 V AC ... 240 V AC 1) |
| Power consumption | ≤ 5 VA |
| Switching output | Relay, electrically isolated 2) |
| Output function | NO |
| Switching mode | Light/dark switching 2) |
| Switching mode selector | Selectable via light/dark selector |
| Switching current (switching voltage) |
3 A (240 V AC) 3 A (30 V DC) |
| Response time | ≤ 20 ms |
| Switching frequency | 25 Hz 3) |
| Time functions |
One shot On delay Off delay Without time delay |
| Delay time |
Adjustable via time delay selector switch, 0.1 s ... 5 s Adjustable via time control |
| Connection type | Cable gland |
| Circuit protection |
A 4) C 5) |
| Protection class | II 6) |
