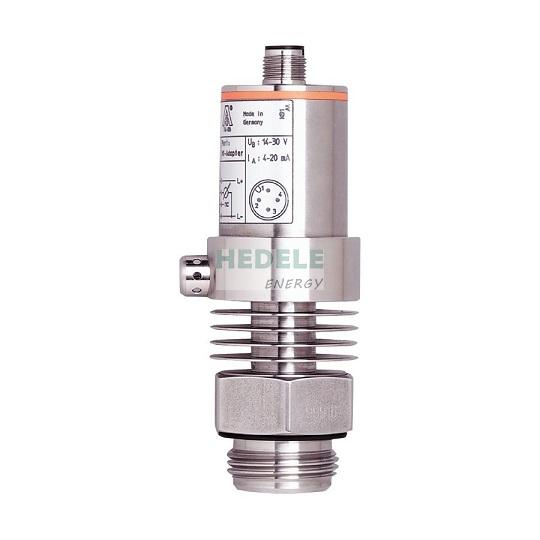

Flush pressure transmitter PM2058
Delivery time: 10-12 weeks
Product characteristics
|
Number of inputs and outputs
|
Number of analogue outputs: 1
|
|
Measuring range
|
|
-0.0125...0.25 bar
|
-12.5...250 mbar
|
-5...100.4 inH2O
|
-1.25...25 kPa
|
|
|
Process connection
|
threaded connection Aseptoflex external thread Aseptoflex
|
Application
|
Special feature
|
Gold-plated contacts
|
|
Application
|
flush mountable for the food and beverage industry
|
|
Media
|
viscous media and liquids with suspended particles; liquids and gases
|
|
Medium temperature [°C]
|
-25...125; (145 max. 1h)
|
|
Min. bursting pressure
|
|
30000 mbar
|
12000 inH2O
|
3000 kPa
|
|
|
Pressure rating
|
|
6000 mbar
|
2400 inH2O
|
600 kPa
|
|
|
Type of pressure
|
relative pressure
|
|
No dead space
|
yes
|
Electrical data
|
Operating voltage [V]
|
14...30 DC
|
|
Min. insulation resistance [MΩ]
|
100; (500 V DC)
|
|
Protection class
|
III
|
|
Reverse polarity protection
|
yes
|
|
Measuring principle
|
hydrostatic
|
Inputs / outputs
|
Number of inputs and outputs
|
Number of analogue outputs: 1
|
Outputs
|
Total number of outputs
|
1
|
|
Output signal
|
analogue signal
|
|
Number of analogue outputs
|
1
|
|
Analogue current output [mA]
|
4...20
|
|
Max. load [Ω]
|
550; (Ub = 24 V; (Ub - 13 V) / 20 mA)
|
|
Overload protection
|
yes
|
Measuring/setting range
|
Measuring range
|
|
-0.0125...0.25 bar
|
-12.5...250 mbar
|
-5...100.4 inH2O
|
-1.25...25 kPa
|
|
|
Analogue start point
|
|
-12.5...100 mbar
|
-5...40.2 inH2O
|
-1.25...10 kPa
|
|
|
Analogue end point
|
|
50...250 mbar
|
20.2...100.4 inH2O
|
5...25 kPa
|
|
|
In steps of
|
|
0.5 mbar
|
0.2 inH2O
|
0.05 kPa
|
|
|
Factory setting
|
|
|
ASP = 0.0 mbar
|
AEP = 250.0 mbar
|
|
Accuracy / deviations
|
Repeatability [% of the span]
|
< ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1)
|
|
Characteristics deviation [% of the span]
|
< ± 0,6; (Turn down 1:1 , linearity, incl. hysteresis and repeatability , limit value setting to DIN EN IEC 62828-1)
|
|
Linearity deviation [% of the span]
|
< ± 0,5; (Turn down 1:1)
|
|
Hysteresis deviation [% of the span]
|
< ± 0,1; (Turn down 1:1)
|
|
Long-term stability [% of the span]
|
< ± 0,1; (Turn down 1:1; per year)
|
|
Temperature coefficient zero point [% of the span / 10 K]
|
< ± 0,1; (0...80 °C)
|
|
Temperature coefficient span [% of the span / 10 K]
|
< ± 0,4; (0...80 °C)
|
Response times
|
Max. response time analogue output [ms]
|
3
|
Software / programming
|
Parameter setting options
|
zero point; span
|
Interfaces
|
Communication interface
|
EPS
|
Operating conditions
|
Ambient temperature [°C]
|
-25...80
|
|
Storage temperature [°C]
|
-40...100
|
|
Protection
|
IP 67
|
Tests / approvals
|
EMC
|
|
EN 61000-4-2 ESD
|
4 kV CD / 8 kV AD
|
|
EN 61000-4-3 HF radiated
|
1 GHz / accuracy < 2,5%
|
|
EN 61000-4-4 Burst
|
2 kV
|
|
EN 61000-4-6 HF conducted
|
10 V
|
|
|
Shock resistance
|
|
DIN IEC 68-2-27
|
50 g (11 ms)
|
|
|
Vibration resistance
|
|
DIN IEC 68-2-6
|
20 g (10...2000 Hz)
|
|
|
MTTF [years]
|
271
|
Mechanical data
|
Weight [g]
|
469.5
|
|
Materials
|
stainless steel (1.4404 / 316L); PEI; FKM
|
|
Materials (wetted parts)
|
ceramics (99.9 % Al2O3); stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4; PTFE
|
|
Min. pressure cycles
|
100 million
|
|
Process connection
|
threaded connection Aseptoflex external thread Aseptoflex
|
Remarks
|
Remarks
|
|
The 3-A qualification is only valid if adapters with 3-A qualification are used for installation.
|
|
|
Notes
|
Please do not use for new projects.; no more adapters available as accessories
|
|
Pack quantity
|
1 pcs.
|
Electrical connection
|
Connection
|
Connector: 1 x M12; coding: A; Contacts: gold-plated
|
