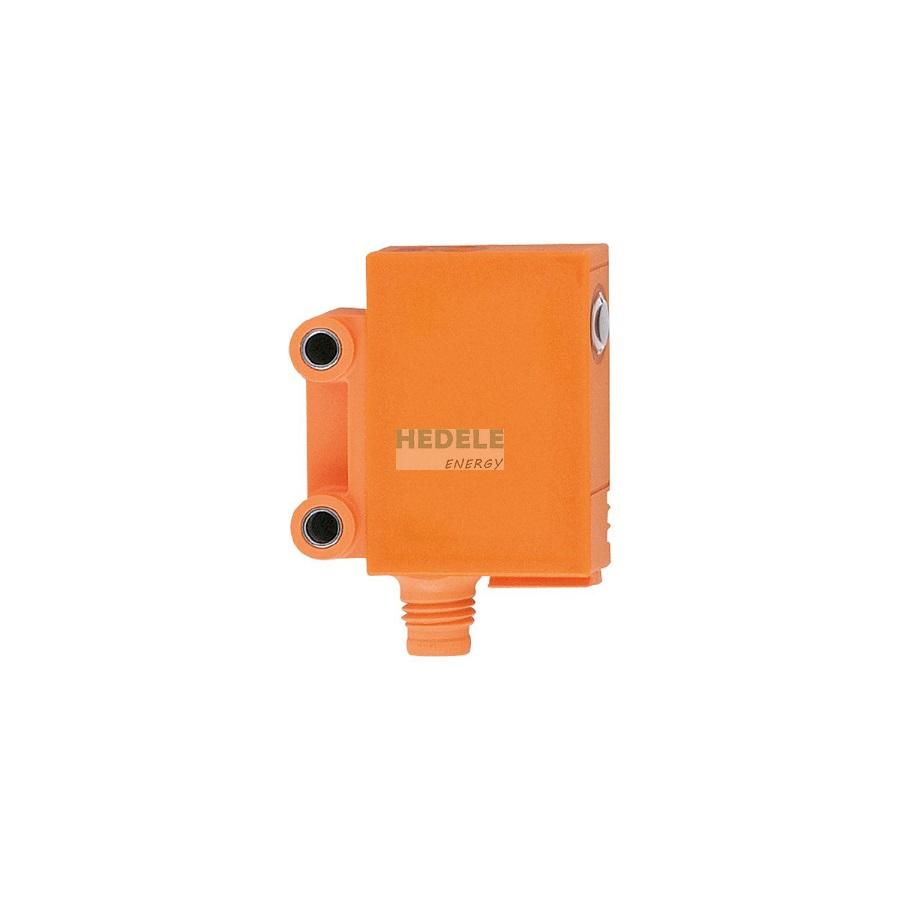

Mirror reflection photoelectric switch OJ5126
Delivery time: 1 week
Product characteristics
|
Type of light
|
red light
|
|
Housing
|
rectangular
|
Application
|
Special feature
|
polarisation filter
|
|
Function principle
|
Retro-reflective sensor
|
Electrical data
|
Operating voltage [V]
|
10...30 DC
|
|
Current consumption [mA]
|
< 22
|
|
Protection class
|
III
|
|
Reverse polarity protection
|
yes
|
|
Type of light
|
red light
|
|
Wave length [nm]
|
660
|
Outputs
|
Electrical design
|
PNP
|
|
Output function
|
light-on/dark-on mode; (programmable)
|
|
Max. voltage drop switching output DC [V]
|
2.5
|
|
Permanent current rating of switching output DC [mA]
|
200
|
|
Switching frequency DC [Hz]
|
2000
|
|
Short-circuit protection
|
yes
|
|
Type of short-circuit protection
|
pulsed
|
|
Overload protection
|
yes
|
Detection zone
|
Range referred to prismatic reflector [m]
|
0...2; (Prismatic reflector Ø 80 E20005)
|
|
Range adjustable
|
yes
|
|
Max. light spot diameter [mm]
|
64
|
|
Light spot dimensions refer to
|
at maximum range
|
|
Polarisation filter available
|
yes
|
Operating conditions
|
Ambient temperature [°C]
|
-25...60
|
|
Protection
|
IP 67
|
Mechanical data
|
Weight [g]
|
40
|
|
Housing
|
rectangular
|
|
Dimensions [mm]
|
35 x 11 x 24
|
|
Materials
|
housing: ABS; LED window: SEPS; pushbutton: SEPS
|
|
Lens material
|
|
|
Lens alignment
|
side lens
|
Displays / operating elements
|
Display
|
|
switching status
|
1 x LED, yellow
|
|
operation
|
1 x LED, green
|
|
function
|
1 x LED, red
|
|
|
Electronic lock
|
yes
|
Accessories
|
Items supplied
|
|
screws: 2
|
|
spring washers: 2
|
|
Nuts: 2
|
|
Remarks
|
Remarks
|
|
operating voltage "supply class 2" according to cULus
|
|
|
Pack quantity
|
1 pcs.
|
Electrical connection
|
Connection
|
Connector: 1 x M8; coding: A
|
