EVC539

Rate:

0.0000/5

( 0 reviews )

Item NO.: V030618 MOQ: 0

Weight: 0.2kgs

Package Size: 15.5*15.5*45mm

Price：

$29.50

Qty：

$29.50

Shipping：

Calculate Shipping Cost

HCM（ZXG）

EVC539

Delivery time：12 weeks

Application

Special feature	Free from silicone; Halogen-free; Gold-plated contacts; Screened cable; Drag chain suitability
Free from silicone	yes

Electrical data

Operating voltage [V]	< 50 AC / < 60 DC
Protection class	III
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]

-25...90

Note on ambient temperature

cULus: ...75

Ambient temperature (moving) [°C]

-25...90

Note on ambient temperature (moving)

cULus: ...75

Protection

IP 65; IP 67

Mechanical data

Weight [g]

215.4

Dimensions [mm]

15.5 x 15.5 x 45

Materials

housing: TPU orange; Sealing: FKM

Material nut

brass, nickel-plated

Drag chain suitability

yes

Drag chain suitability

bending radius for flexible use	min. 10 x cable diameter
travel speed	max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
bending cycles	≥ 2 Mio.
torsional strain	± 180 °/m

Remarks

Pack quantity	1 pcs.

Electrical connection

	Cable: 5 m, PUR, Halogen-free, black, Ø 4.9 mm, shielded; 4 x 0.34 mm² (42 x Ø 0.1 mm )

Electrical connection - socket

Connection	Connector: 1 x M12, straight; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm; Shielded connection cable: screen connected

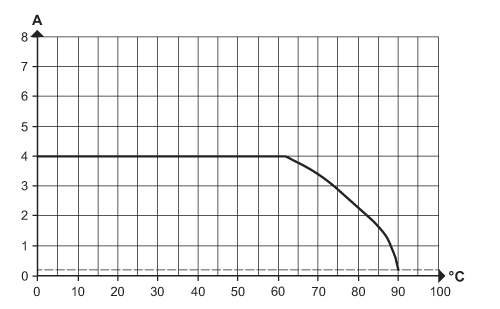

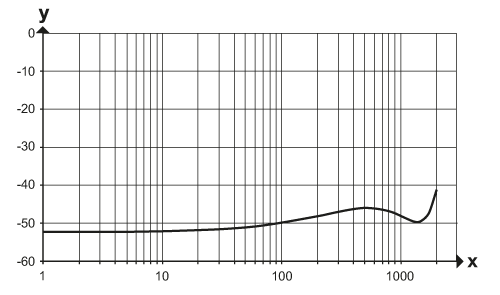

Diagrams and graphs
