ZLL(YL)

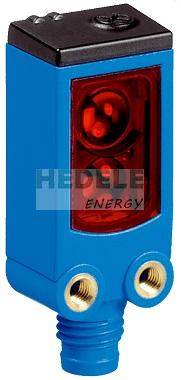

WTB4-3P2261
delivery time:6-8 weeks
| Device type | Photoelectric sensors |
| Dimensions (W x H x D) | 16 mm x 39.5 mm x 12 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 4 mm ... 150 mm 1) |
| Sensing range | 15 mm ... 150 mm 1) |
| Type of light | Visible red light |
| Light source | PinPoint LED 2) |
| Light spot size (distance) | Ø 7 mm (50 mm) |
| Wave length | 650 nm |
| Adjustment | Potentiometer, 5 turns |
| Special applications | Detecting small objects |
