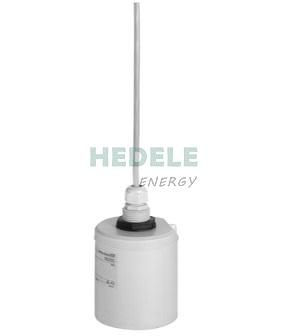

FDU92-RG3A

ZZ(LSH)

FDU92-RG3A

delivery time：8-10 weeks

• Measuring principle

  Ultrasonic

• Characteristic / Application

  Separated version with field housing or top hat rail housing for control cabinet instrumentation, 300 m in-between sensor and transmitter

• Supply / Communication

  4-wire (HART, Profibus DP)

• Accuracy

  +/- 2mm + 0.17% of measured distance

• Ambient temperature

  -40 °C ... 95 °C
  (-40 °F ... 203 °F)

• Process temperature

  -40 °C ... 95 °C
  (-40 °F ... 203 °F)

• Process pressure / max. overpressure limit

  0.7 bar ... 4 bar abs
  (10 psi ... 58 psi)

• Main wetted parts

  PVDF (fully welded IP68 / NEMA 6P)

• Process connection

  G / NPT 1"

• Blocking distance

  0.4 m (1.3 ft)

• Max. measurement distance

  Liquids: 20 m (65 ft),
  Solids: 10 m (33 ft)

• Communication

  Transmitter:
  4 ... 20 mA HART
  Profibus DP

• Certificates / Approvals

  ATEX, FM, CSA, IEC Ex, INMETRO, NEPSI, EAC Ex

• Options

  Second 4...20 mA output

• Components

  Transmitter:
  FMU90, FMU95

• Application limits

  For tank farms scanner:
  FMU95
