ZXG

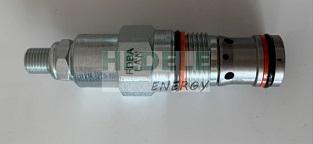

FDBA-LAN
Delivery date: stock
| socket | T-13A |
| series | 1 |
| Flow capacity | 23 L/min. |
| Maximum operating pressure | 350 bar |
| Adjustment - Number of counterclockwise turns from full off to full on | 5 |
| The valve head is fitted with a hexagonal size | 22,2 mm |
| Valve mounting torque | 41 - 47 Nm |
| Adjust the Allen size of the bolt | 4 mm |
| Locknut Hex Size | 15 mm |
| Locknut Torque | 9 - 10 Nm |
| Model weight | 0.14 kg. |
| Seal kit - Cartridge | Buna: 990010007 |
| Seal kit - Cartridge | EPDM: 990010014 |
| Seal kit - Cartridge | Polyurethane: 990010002 |
| Seal kit - Cartridge | Viton: 990010006 |
