| Application | |
|---|---|
| System | Free from silicone; Halogen-free; gold-plated contacts; Drag chain suitability |
| Free from silicone | yes |
| Electrical data | |
| Operating voltage [V] | < 60 AC/DC |
| Protection class | II |
| Max. current load total [A] | 4 |
| Overall current rating (UL) [A] | 3 |
| Operating conditions | |
| Ambient temperature [°C] | -25...90 |
| Note on ambient temperature | |
| Ambient temperature (moving) [°C] | -25...90 |
| Note on ambient temperature (moving) | |
| Storage temperature [°C] | -25...55 |
| Storage humidity [%] | 10...100 |
| Other climatic conditions for storage according to stated class | |
| Protection | IP 65; IP 67; IP 68; IP 69K |
| Mechanical data | |
| Weight [g] | 193.4 |
| Dimensions [mm] | 15.5 x 15.5 x 45 |
| Material | housing: TPU (urethane) orange; sealing: FKM |
| Material nut | brass, nickel-plated |
| Drag chain suitability | yes |
| Drag chain suitability | |
| Remarks | |
| Notes | Please see the technical note under "Downloads" |
| Pack quantity | 1 pcs. |
| Electrical connection | |

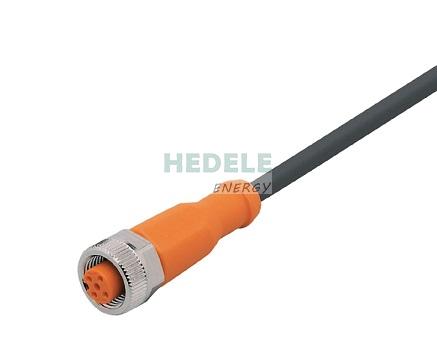

| Cable: 5 m, PUR, Halogen-free, black, Ø 4.6 mm; 5 x 0.34 mm² (42 x Ø 0.1 mm ) | |
| Electrical connection - Socket | |
| Connection | Connector: 1 x M12, straight; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm |
