ZLL(YMX)
TGEX-7.5TR
delivery time:in stock

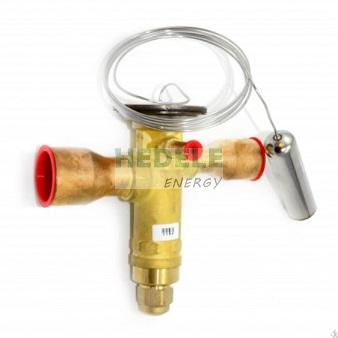

Danfoss TGE 7.5 TGE 8 27KW Expansion Valves
This is a thermostatic expansion Valve, TGE, R22/R407C which is a dedicated designed series for all standard refrigerants.
Temperature range [°C]: -40 - 10, Orifice capacities [kW]: 27.00, Orifice capacities [TR]: 7.50, Pressure equalization: Externally equalized
This TGE Valve can be used on water chillers, Bus A/C, Heat pumps, Refrigerated Containers and others refrigeration system.
|
Balanced port [Yes/No] |
Yes |
|
Body material |
Brass |
|
Bulb temperature max. [ºC] |
100 °C |
|
Bulb temperature max. [ºF] |
210 °F |
|
Capillary tube length [in] |
157 in |
|
Capillary tube length [mm] |
4000 mm |
|
Connection material |
Copper |
|
Direction |
Straightway |
|
Element temperature max. [°C] |
110 °C |
|
Element temperature max. [°F] |
230 °F |
|
Equalization connection type |
SOLDER, ODF |
|
Equalization size [mm] |
6 mm |
|
Flow direction |
Bi-flow |
|
Flow direction indicator |
Embossed 1-way arrow |
|
Inlet connection type |
SOLDER, ODF |
|
Inlet size [mm] |
16 mm |
|
Max. Working Pressure [bar] |
46 bar |
|
Max. Working Pressure [psig] |
667 psig |
|
Orifice capacities [kW] |
27 kW |
|
Orifice capacities [TR] |
7.5 tons |
