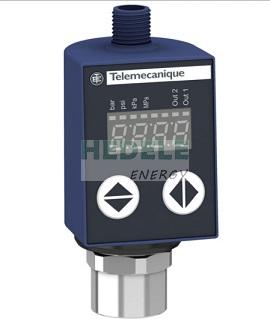

XMLR400M1P25

Rate:

0.0000/5

( 0 reviews )

Item NO.: V029753 MOQ: 0

Weight: 0.5kgs

Package Size:

Price：

$316.00

Qty：

$316.00

Shipping：

Calculate Shipping Cost

XMLR400M1P25

delivery time：8-10 weeks

Main
Range of product	Telemecanique Pressure sensors XM
Product or component type	Electronic pressure sensors
Pressure sensor type	Pressure transmitter
Pressure switch type of operation	Pressure transmitter with 1 switching output
Device short name	XMLR
Pressure rating	400 bar 39989.59 kPa
Maximum permissible accidental pressure	1200 bar 119968.77 kPa 120 MPa
Destruction pressure	240 MPa 2400 bar 239937.54 kPa
Controlled fluid	Fresh water (0…80 °C) Air (-20…80 °C) Hydraulic oil (-20…80 °C) Refrigeration fluid (-20…80 °C)
Fluid connection type	G 1/4 (female) conforming to DIN 3852-Y
[Us] rated supply voltage	24 V DC SELV (voltage limits: 17…33 V)

Complementary
Current consumption	<= 50 mA
Electrical connection	Male connector M12, 4 pins
Analogue output function	4...20 mA
type of output signal	Analogue + discrete
Analogue output function	4...20 mA
Discrete output type	Solid state PNP, NO/NC programmable
Maximum switching current	250 mA
Contacts type and composition	NO/NC programmable
Scale type	Fixed differential
Maximum voltage drop	2 V
Adjustable range of switching point on rising pressure	3199.17…39989.59 kPa 32…400 bar 3.2…40 MPa
Adjustable range of switching point on falling pressure	1999.48…38789.90 kPa 20…388 bar 2…38.8 MPa
Minimum differential travel	12 bar 1.2 MPa 1199.69 kPa
materials in contact with fluid	316L stainless steel
Front material	Polyester
Housing material	316L stainless steel Polyacrylamide
Operating position	Any position, but disposals can falsified the measurement in case of upside down mounting
Protection type	Reverse polarity Short-circuit protection Overload protection Overvoltage protection
Response time on output	<= 10 ms for analog output <= 5 ms for discrete output
switching output time delay	0...50 s in steps of 1 second
Display type	4 digits 7 segments
Local signalling	1 LED (yellow) for light ON when switch is actuated
Display response time type	Fast 50 ms Normal 200 ms Slow 600 ms
Maximum delay first up	300 ms
overall accuracy	<= 1 % of the measuring range
linearity error on analogue output	<= 0.5 % of the measuring range
hysteresis on analogue output	<= 0.2 % of the measuring range
measurement accuracy on switching output	<= 0.6 % of the measuring range
Repeat accuracy	<= 0.2 % of the measuring range
Drift of the sensitivity	+/- 0.03 % of measuring range/°C
Drift of the zero point	+/- 0.1 % of measuring range/°C
Display accuracy	<= 1 % of the measuring range
Mechanical durability	10000000 cycles
Depth	42 mm
Height	88 mm
Width	41 mm
Net weight	0.186 kg

Complementary

Current consumption <= 50 mA

Electrical connection Male connector M12, 4 pins

Analogue output function 4...20 mA

type of output signal Analogue + discrete

Analogue output function 4...20 mA

Discrete output type Solid state PNP, NO/NC programmable

Maximum switching current 250 mA

Contacts type and composition NO/NC programmable

Scale type Fixed differential

Maximum voltage drop 2 V

Adjustable range of switching point on rising pressure 3199.17…39989.59 kPa
32…400 bar
3.2…40 MPa

Adjustable range of switching point on falling pressure 1999.48…38789.90 kPa
20…388 bar
2…38.8 MPa

Minimum differential travel 12 bar
1.2 MPa
1199.69 kPa

materials in contact with fluid 316L stainless steel

Front material Polyester

Housing material 316L stainless steel
Polyacrylamide

Operating position Any position, but disposals can falsified the measurement in case of upside down mounting

Protection type Reverse polarity
Short-circuit protection
Overload protection
Overvoltage protection

Response time on output <= 10 ms for analog output
<= 5 ms for discrete output

switching output time delay 0...50 s in steps of 1 second

Display type 4 digits 7 segments

Local signalling 1 LED (yellow) for light ON when switch is actuated

Display response time type Fast 50 ms
Normal 200 ms
Slow 600 ms

Maximum delay first up 300 ms

overall accuracy <= 1 % of the measuring range

linearity error on analogue output <= 0.5 % of the measuring range

hysteresis on analogue output <= 0.2 % of the measuring range

measurement accuracy on switching output <= 0.6 % of the measuring range

Repeat accuracy <= 0.2 % of the measuring range

Drift of the sensitivity +/- 0.03 % of measuring range/°C

Drift of the zero point +/- 0.1 % of measuring range/°C

Display accuracy <= 1 % of the measuring range

Mechanical durability 10000000 cycles

Depth 42 mm

Height 88 mm

Width 41 mm

Net weight 0.186 kg
