ZLL(HJY)

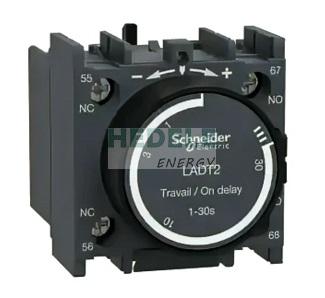

LADT2
delivery time:in stock
| Range |
TeSys TeSys Deca |
|---|---|
| Product name | TeSys Deca |
| Product or component type | Time delay auxiliary contact block |
| Range compatibility |
TeSys D CAD TeSys D LC1D TeSys F LC1F TeSys F CR1F TeSys Deca CAD TeSys Deca LC1D |
| Mounting location | Front |
| Pole contact composition | 1 NO + 1 NC |
| Contacts operation | Time delay |
| Timer type | On delay |
| Time delay range | 1...30 s |
| [Ue] rated operational voltage | 690 V AC 25...400 Hz |
| [Ie] rated operational current |
6 A at 120 V AC-15 1.04 A at 690 V AC-15 0.55 A at 125 V DC-13 0.1 A at 600 V DC-13 |
| [Ui] rated insulation voltage |
690 V conforming to IEC 60947-5-1 600 V conforming to UL 60947-5-1 600 V conforming to CSA C22.2 No 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A (at 60 °C) |
| standards |
CSA C22.2 No 60947-5-1 GB/T 14048.5 EN/IEC 60947-5-1 |
| Product certifications |
IECEE CB Scheme UL CSA CCC EAC UKCA |
