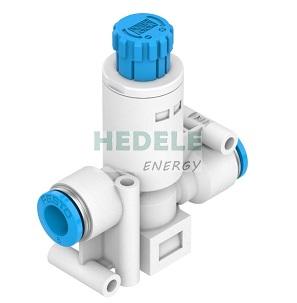

VRPA-C-Q8-E

ZLL(ZXG)

VRPA-C-Q8-E

delivery time:3-4weeks

• Controller functionOutlet pressure constant With secondary exhausting With return flow function
• Pneumatic connection 1QS-8
• Pneumatic connection 2QS-8
• Type of mountingWith through-hole
• Standard nominal flow rate130 l/min
• Ambient temperature0 °C ... 60 °C
• Housing materialPBT
• Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
• Mounting positionAny
• Actuation typeManual
• Adjusting elementRotary knob with detent
• Symbol00991559
• Pressure regulation range MPa0.1 MPa ... 0.8 MPa
• Pressure regulation range1 bar ... 8 bar
• Pressure regulation range psi14.5 psi ... 116 psi
• Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
• LABS (PWIS) conformityVDMA24364-B2-L
