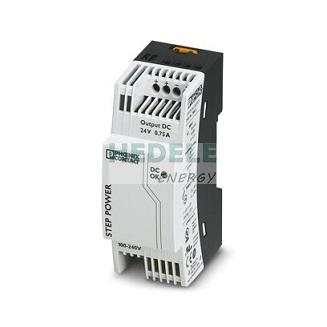

STEP-PS/ 1AC/24DC/0.75 2868635
delivery time:8weeks
| AC operation | |
| Nominal input voltage range | 100 V AC ... 240 V AC |
| Input voltage range | 85 V AC ... 264 V AC |
| 95 V DC ... 250 V DC | |
| Input voltage range AC | 85 V AC ... 264 V AC |
| Input voltage range DC | 95 V DC ... 250 V DC |
| Voltage type of supply voltage | AC/DC |
| Inrush current | < 15 A (typical) |
| Inrush current integral (I2t) | < 0.1 A2s |
| AC frequency range | 45 Hz ... 65 Hz |
| Frequency range DC | 0 Hz |
| Mains buffering time | typ. 15 ms (120 V AC) |
| typ. 70 ms (230 V AC) | |
| Current consumption | 0.3 A (120 V AC) |
| 0.2 A (230 V AC) | |
| Nominal power consumption | 36.9 VA |
| Protective circuit | Transient surge protection; Varistor |
| Power factor (cos phi) | 0.58 |
| Typical response time | < 0.5 s |
| Input fuse | 1.25 A (slow-blow, internal) |
| Recommended breaker for input protection | 6 A ... 16 A (Characteristics B, C, D, K) |
