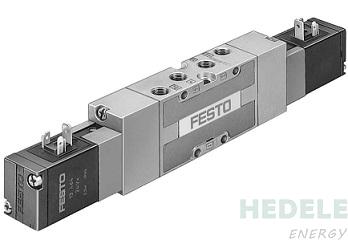

MVH-5/3E-1/4-S-B

ZLL(YMX)

MVH-5/3E-1/4-S-B

delivery time:4-5weeks

• Valve function5/3, exhausted
• Actuation typeElectrical
• Width32 mm
• Standard nominal flow rate1600 l/min
• Pneumatic working portG1/4
• Operating pressure-0.09 MPa ... 1 MPa
• Operating pressure-0.9 bar ... 10 bar
• Structural designPiston gate valve
• Reset methodMechanical spring
• Nominal width10 mm
• Width dimension33 mm
• Exhaust air functionWith flow control option
• Sealing principleSoft
• Mounting positionAny
• Manual overrideNon-detenting
• Type of controlPilot-controlled
• Pilot air supply portExternal
• Flow directionReversible
• Symbol00991032
• LapOverlap
• Pilot pressure MPa0.3 MPa ... 1 MPa
• Pilot pressure3 bar ... 10 bar
• b-value0.38
• C value6.35 l/sbar
• Max. switching frequency3 Hz
• Switching time off38 ms
• On switching time36 ms
• Changeover time46 ms
• Max. positive test pulse with 0 signal2200 µs
• Max. negative test pulse on 1 signal3700 µs
• Coil characteristics24 V DC: 2.5 W
• Permissible voltage fluctuations+/- 10 %
• Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
• Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
• Corrosion resistance class (CRC)1 - Low corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Storage temperature-40 °C ... 60 °C
• Temperature of medium-5 °C ... 50 °C
• Pilot mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
• Ambient temperature-5 °C ... 50 °C
