ZLL(LFL)

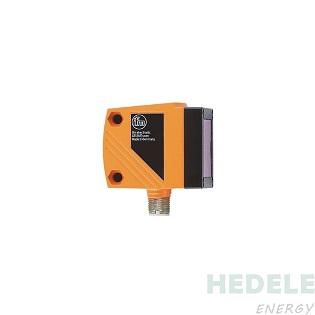

O1D106
delivery time:in stock
| Product characteristics | |
|---|---|
| Laser protection class | 2 |
| Housing | rectangular |
| Electrical data | |
| Operating voltage [V] | 18...30 DC |
| Current consumption [mA] | < 150 |
| Protection class | III |
| Reverse polarity protection | yes |
| Typ. lifetime [h] | 50000 |
| Inputs / outputs | |
| Number of inputs and outputs | Number of digital outputs: 2; Number of analog outputs: 1 |
| Outputs | |
| Total number of outputs | 2 |
| Electrical design | PNP |
| Number of digital outputs | 2 |
| Output function | normally open / closed; (programmable) |
| Max. current load per output [mA] | 200 |
| Number of analog outputs | 1 |
| Analog current output [mA] | 4...20; (scalable IEC 61131-2) |
| Max. load [Ω] | 250 |
| Analog voltage output [V] | 0...10; (scalable IEC 61131-2) |
| Min. load resistance [Ω] | 5000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
