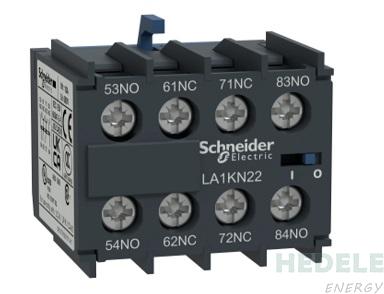

LA1KN22
delivery time:2-3weeks
Range
TeSys
product name
TeSys K
Product or component type
Auxiliary contact block
Device short name
LA1
Range compatibility
TeSys K LC1K
TeSys K CA2K
TeSys K CA3K
Mounting location
Front
Pole contact composition
2 NO + 2 NC
Contacts operation
Instantaneous
[Ue] rated operational voltage
690 V AC 25...400 Hz
[Ui] rated insulation voltage
690 V conforming to IEC 60947-5-1
600 V conforming to UL 60947-5-1
600 V conforming to CSA C22.2 No 60947-5-1
[Ith] conventional free air thermal current
10 A (at 50 °C)
Standards
EN/IEC 60947-5-1
UL 60947-5-1
CSA C22.2 No 60947-5-1
GB/T 14048.5
Product certifications
CB Scheme
CCC
UL
CSA
CE
UKCA
Irms rated making capacity
110 A at <= 690 V AC conforming to IEC 60947
Permissible short-time rating
80 A 1 s
60 A 500 ms
110 A 100 ms
Associated fuse rating
10 A gG at <= 690 V conforming to IEC 60947
Minimum switching current
5 mA
Minimum switching voltage
17 V
Non overlap distance
0.5 mm
Insulation resistance
> 10 MOhm
Connections - terminals
Screw clamp terminals 1 cable(s) 0.34…1.5 mm²flexible with cable end
Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible without cable end
Screw clamp terminals 1 cable(s) 1.5…4 mm²rigid
Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible with cable end
Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable end
Screw clamp terminals 2 cable(s) 1.5…4 mm²rigid
Tightening torque
1.3 N.m - with screwdriver Philips No 2
1.3 N.m - with screwdriver pozidriv No 2
