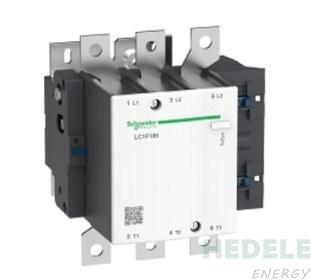

LC1F185P7
delivery time:6-8weeks
Range
TeSys
Range of product
TeSys F
Product or component type
Contactor
Device short name
LC1F
Contactor application
Resistive load
Motor control
utilisation category
AC-4
AC-3
AC-1
Poles description
3P
[Ue] rated operational voltage
<= 460 V DC
<= 690 V AC 50/60 Hz
[Uc] control circuit voltage
230 V AC 40...400 Hz
[Ie] rated operational current
275 A (at <40 °C) at <= 440 V AC-1
185 A (at <55 °C) at <= 440 V AC-3
[Uimp] rated impulse withstand voltage
8 kV
[Ith] conventional free air thermal current
275 A (at 40 °C)
Rated breaking capacity
1480 A conforming to IEC 60947-4-1
[Icw] rated short-time withstand current
1500 A 40 °C - 10 s
920 A 40 °C - 30 s
740 A 40 °C - 1 min
500 A 40 °C - 3 min
400 A 40 °C - 10 min
Associated fuse rating
200 A aM at <= 440 V
315 A gG at <= 440 V
Average impedance
0.33 mOhm - Ith 275 A 50 Hz
[Ui] rated insulation voltage
1000 V conforming to IEC 60947-4-1
1500 V conforming to VDE 0110 group C
Power dissipation per pole
12 W AC-3
25 W AC-1
Overvoltage category
III
power pole contact composition
3 NO
Motor power kW
90 kW at 380...400 V AC 50/60 Hz (AC-3)
100 kW at 415 V AC 50/60 Hz (AC-3)
100 kW at 440 V AC 50/60 Hz (AC-3)
110 kW at 500 V AC 50/60 Hz (AC-3)
110 kW at 660...690 V AC 50/60 Hz (AC-3)
55 kW at 220...230 V AC 50/60 Hz (AC-3)
33 kW at 400 V AC 50/60 Hz (AC-4)
Control circuit voltage limits
Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C)
Drop-out: 0.2...0.55 Uc 40...400 Hz (at 55 °C)
Mechanical durability
10 Mcycles
Inrush power in VA
1070 VA, 40...400 Hz cos phi 0.9 (at 20 °C)
Hold-in power consumption in VA
9.9 VA, 40...400 Hz cos phi 0.9 (at 20 °C)
Maximum operating rate
2400 cyc/h 55 °C
Operating time
35 ms closing (at Uc)
130 ms opening (at Uc)
