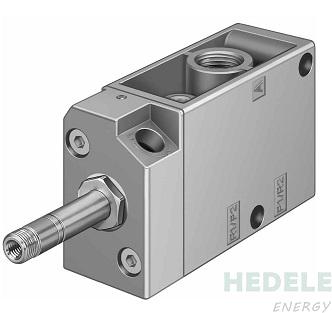

MFH-3-1/4

ZLL(ZXG)

MFH-3-1/4

delivery time:in stock

• Valve function3/2, closed, monostable
• Actuation typeElectrical
• Width30.5 mm
• Standard nominal flow rate800 l/min
• Pneumatic working portG1/4
• Operating voltageVia solenoid coil, to be ordered separately
• Operating pressure0.15 MPa ... 0.8 MPa
• Operating pressure1.5 bar ... 8 bar
• Structural designPlate seat
• Reset methodMechanical spring
• Certificationc UL us - Recognized (OL)
• Degree of protectionIP65
• Nominal width7 mm
• Width dimension32 mm
• Exhaust air functionWith flow control option
• Sealing principleSoft
• Mounting positionAny
• Manual overrideDetenting
• Type of controlPilot-controlled
• Flow directionNon-reversible
• Symbol00991041
• LapUnderlap
• Switching time off29 ms
• On switching time10 ms
• Max. positive test pulse with 0 signal2200 µs
• Max. negative test pulse on 1 signal3700 µs
• Coil characteristicsSee solenoid coil, to be ordered separately
• Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
• Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
• Corrosion resistance class (CRC)1 - Low corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Storage temperature-20 °C ... 60 °C
• Temperature of medium-10 °C ... 60 °C
• Ambient temperature-5 °C ... 40 °C
