ZLL(ZXG)

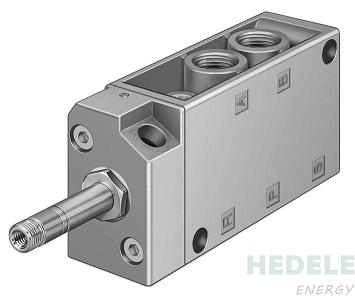

MFH-5-1/4
delivery time:in stock
-
Valve function5/2, monostable
-
Actuation typeElectrical
-
Width30.5 mm
-
Standard nominal flow rate1000 l/min
-
Pneumatic working portG1/4
-
Operating voltageVia solenoid coil, to be ordered separately
-
Operating pressure0.22 MPa ... 0.8 MPa
-
Operating pressure2.2 bar ... 8 bar
-
Structural designPlate seat
-
Reset methodMechanical spring
-
Certificationc UL us - Recognized (OL)
-
Degree of protectionIP65
-
Nominal width7 mm
-
Width dimension32 mm
-
Exhaust air functionWith flow control option
-
Sealing principleSoft
-
Mounting positionAny
-
Manual overrideDetenting
-
Type of controlPilot-controlled
-
Flow directionNon-reversible
-
Symbol00991035
-
LapUnderlap
-
b-value0.19
-
C value4.49 l/sbar
-
Switching time off29 ms
-
On switching time9 ms
-
Max. positive test pulse with 0 signal2200 µs
-
Max. negative test pulse on 1 signal3700 µs
-
Coil characteristicsSee solenoid coil, to be ordered separately
-
Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
-
Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
-
Corrosion resistance class (CRC)1 - Low corrosion stress
-
LABS (PWIS) conformityVDMA24364-B1/B2-L
-
Storage temperature-20 °C ... 60 °C
-
Temperature of medium-10 °C ... 60 °C
-
Ambient temperature-5 °C ... 40 °C
