ZLL(LFL)

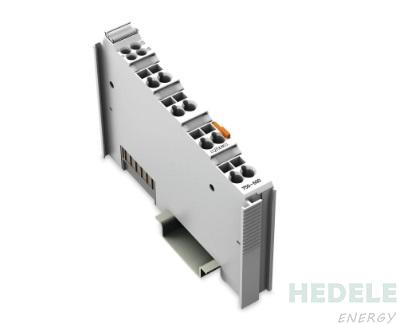

WAGO 750-600
delivery time:in stock
| Ambient temperature (operation) | 0 … +55 °C |
| Surrounding air temperature (storage) | -25 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | horizontal (standing/lying); vertical |
| Relative humidity (without condensation) | 95% |
| Vibration resistance | 4g per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, marine applications |
| EMC emission of interference | per EN 61000-6-3, marine applications |
| Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
|
Permissible H2S contaminant concentration at a relative humidity |
10ppm |
|
Permissible SO2 contaminant concentration at a relative humidity |
25ppm |
