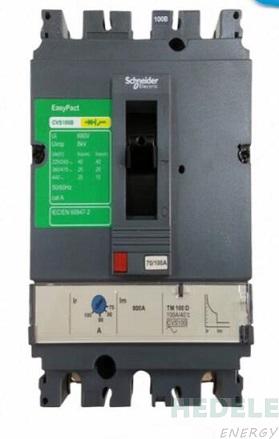

LV510307，CVS100B TM100D 3P3D
delivery time: 2 weeks
Range
EasyPact
Product name
EasyPact CVS
device short name
CVS100B
Product or component type
Circuit breaker
Device application
Distribution
Poles description
3P
Protected poles description
3D
Earth leakage protection (Vigi add on)
Without
[In] rated current
100 A at 40 °C
Network type
AC
Utilisation category
Category A
[Icu] Breaking capacity
40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
25 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
Trip unit name
TM-D
Trip unit technology
Thermal-magnetic
trip unit rating
100 A at 40 °C
Protection type
Short-circuit protection (magnetic)
Overload protection (thermal)
[Uimp] rated impulse withstand voltage
8 kV conforming to EN/IEC 60947-2
Network frequency
50/60 Hz
Breaking capacity code
B
[Ics] rated service breaking capacity
15 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
25 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Mechanical durability
30000 cycles
electrical durability
12000 cycles 415 V In conforming to IEC 60947-2
Control type
Toggle
Thermal protection adjustment range
70…100 A
Long time pick-up adjustment type Ir
Adjustable
Long time pick-up adjustment range
0.7...1 x In
Long time delay adjustment type
Fixed
Instantaneous pick-up adjustment type Ii
Fixed
Instantaneous pick-up adjustment range
800 A
Contact position indicator
Yes
Mounting mode
Fixed
Mounting support
Backplate
Upside connection
Front
Downside connection
Front
Connections - terminals
Screw connection
Connection pitch
35 mm
Compatibility code
CVS100
Width
105 mm
Depth
86 mm
Height
161 mm
Net weight
1.8 kg
