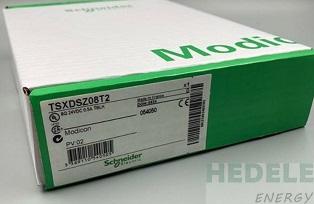

tsxdsz08t2

Rate:

0.0000/5

( 0 reviews )

Item NO.: V028795 MOQ: 0

Weight: 0.5kgs

Package Size:

Price：

$180.00

Qty：

$180.00

Shipping：

Calculate Shipping Cost

tsxdsz08t2

delivery time：in stock

Main
Range of product	Modicon TSX Micro automation platform
Product or component type	Discrete output module
discrete output number	8 screw terminal block
discrete output voltage	24 V DC
Discrete output current	0.5 mA
Discrete output logic	Positive

Complementary
Output voltage limits	19...30 V
Output current limits	0.625 A
maximum leakage current	0.5 mA at state 0
[Ures] residual voltage	0.3 V
Load impedance ohmic	48 Ohm
response time	< 0.5 ms at state 1 < 0.5 ms at state 0
Switching frequency	< 0.6/LI² Hz
Output overvoltage protection	By zener diode
Output short-circuit protection	Thermal circuit breaker Current limiter
Reverse polarity protection	Reverse diode on power supply
Paralleling of outputs	Yes : 2 maximum
Current consumption	38 mA
power dissipation in W	3.5 W by module 0.15 W by channel
isolation voltage	1500 V for 1 s
Net weight	0.24 kg

Complementary

Output voltage limits 19...30 V

Output current limits 0.625 A

maximum leakage current 0.5 mA at state 0

[Ures] residual voltage 0.3 V

Load impedance ohmic 48 Ohm

response time < 0.5 ms at state 1
< 0.5 ms at state 0

Switching frequency < 0.6/LI² Hz

Output overvoltage protection By zener diode

Output short-circuit protection Thermal circuit breaker
Current limiter

Reverse polarity protection Reverse diode on power supply

Paralleling of outputs Yes : 2 maximum

Current consumption 38 mA

power dissipation in W 3.5 W by module
0.15 W by channel

isolation voltage 1500 V for 1 s

Net weight 0.24 kg
