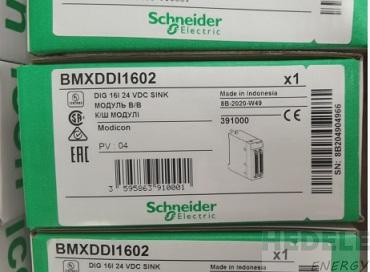

BMXDDI1602
delivery time：in stock
|
Product series |
Modicon X80 |
|
product type |
Discrete input module |
|
Discrete input quantity |
sixteen |
|
Digital input type |
independent |
|
Input type |
Drain type (positive logic) |
|
Discrete input voltage |
24 V DC, discrete input logic: positive |
|
Discrete input current |
3.5 mA |
|
Input compatibility |
With 2-wire / 3-wire proximity sensor in accordance with IEC 60947-5-2 With 2-wire / 3-wire proximity sensor according to IEC 61131-2 type 3 |
|
Sensor power supply |
19-30 V |
|
Current status assurance 1 |
>= 2 mA |
|
Current status guarantee 0 |
<= 1.5 mA |
|
Input impedance |
6800 Ω |
|
insulation resistance |
> 10 MΩ 500 V direct |
|
Power consumption w |
2.5 W |
|
DC typical response time |
4 ms |
|
DC maximum response time |
7 ms |
|
Parallel input |
yes |
|
Typical power consumption |
76 Ma 3.3 V DC on |
|
MTBF reliability |
738749 H |
|
Protection type |
1 external fuse 0.5 a quick fuse for each channel Reverse phase protection |
|
Voltage monitoring threshold |
< 14 V DC transformer fault >18 V DC transformer OK |
