Item NO.: V028445 MOQ: 0
Weight:    0.5kgs
Package Size:
 Price:
$281.25
 Qty:
      $281.25
 Shipping:   Calculate Shipping Cost

ZLL

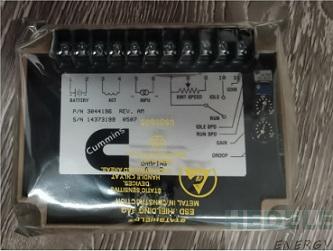

3044196, CUMMINS

delivery time:in stock


Speed stability

Better than ± 0.25%

Speed range

1KHz ~ 6.5KHz

thermal stability

Large ± 0.7%

Idle adjustment

260 ± 20Hz ~ 85% of rated speed

Droop adjustment

Small position is 15Hz ± 6Hz / load current change per ampere

Large position 400Hz ± 75Hz / load current change per ampere

External speed regulation

± 200Hz (external 1K Ω)

Aux input sensitivity

148Hz / 1V., ±10Hz.,

impedance

1MΩ

Operating temperature range

-40 ~ 85

Operating humidity range

Greater than 95%

Storage temperature

-55 ~ 92

shock

20-100HZ  500mm/Sec.

supply voltage

12V and 24V DC battery system

Grounding polarity

negative pole

Power consumption

40mA

Actuator continuous current

Small 1A; 4.5a high (3062322 high current can reach 8a)

Speed sensor signal

2 ~ 120V RMS
