ZLL

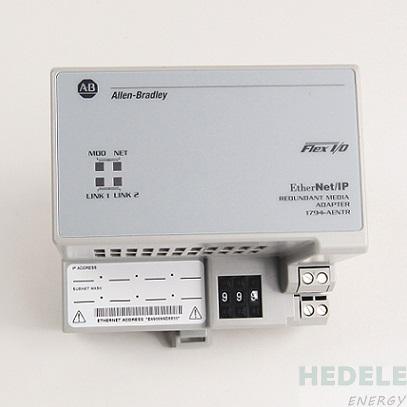

1794-AENTR
delivery time：in stock
|
Product category |
Flex I / O dual port Ethernet / IP adapter module |
|
I / O capacity |
8 modules |
|
Communication rate |
10/100 Mbps |
|
Nominal value of input voltage range |
DC 19.2 to 31.2 Volts |
|
Nominal input voltage |
24 VDC |
|
Surge current |
18 amps 2 ms |
|
Enclosure type class |
None (open) |
|
Isolation voltage |
50 volt continuous |
|
Flexbus current |
640 Ma at 5V DC |
|
power waste |
7.1w at 19.2v DC |
|
Heat dissipation |
24.2 BTU / h at 24 VDC |
