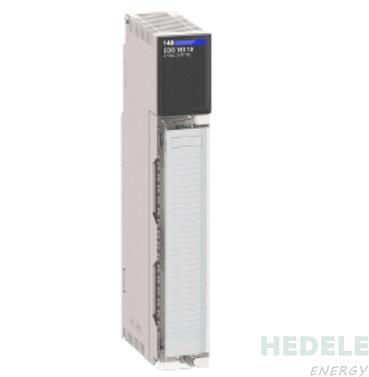

140DDO84300

Product series

Modicon quantum automation platform

product type

DC discrete output module

Discrete output quantity

sixteen

Channel configuration

2 groups of 8

Discrete output logic

Positive logic (source)

Address requirements

1 output word

Discrete output voltage

10... 60 V DC

Output voltage limit

10.2...72 V

Absolute maximum output

72 V constant

maximum voltage drop

<1 V 2 A

Maximum load current

12 Aper module

6 A per group

Surge current

7.5 a for 50 s

response time

< = 1 ms from 0 state to 1 state

< = 1 ms from 1 state to 0 state

maximum leakage current

1 mA 60 V

Load inductance

Inductance (H) = 0.5 / (current (a)) ²  X (switching frequency (Hz))

Fuse used with relay

2 A per point

8 A per group

Insulation between each channel and bus

2500 VRMs DC for 1 minute

Insulation between groups

700 VRMs DC for 1 minute

Protection type

Internal output protection of each group of 8A fuses
