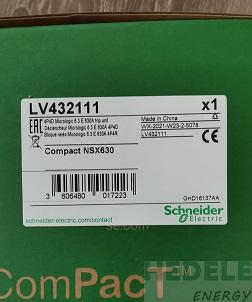

LV432111

Rate:

0.0000/5

( 0 reviews )

Item NO.: V028389 MOQ: 0

Weight: 2kgs

Package Size:

Price：

$598.00

Qty：

$598.00

Shipping：

Calculate Shipping Cost

LV432111

delivery time：7-8 weeks

Main
range	ComPact
range of product	ComPact NSX400...630
product or component type	Trip unit
trip unit name	Micrologic 6.3 E
trip unit technology	Electronic
range compatibility	ComPact NSX630
device application	Distribution Generator
Number of poles	4P
protected poles description	3t + OSN 3t + N/2 4t 3t
neutral position	Left
trip unit protection functions	LSIG
protection type	L : for overload protection (long time) S : for short time short-circuit protection I : for instantaneous short-circuit protection G : for ground fault protection
Trip unit rated current	630 A at 40 °C
[Ue] rated operational voltage	690 V AC 50/60 Hz
network type	AC
network frequency	50/60 Hz

Complementary
Long-time pick-up adjustment type Ir (thermal protection)	Adjustable 9 settings
[Ir] long-time protection pick-up adjustment range	250...630 A
Long-time protection delay adjustment type tr	Adjustable
[tr] long-time protection delay adjustment range	15…400 s at 1.5 x Ir 0.35…11 s at 7.2 x Ir 0.5…16 s at 6 x Ir
thermal memory	20 minutes before and after tripping
Short-time protection pick-up adjustment type Isd	Adjustable
[Isd] Short-time protection pick-up adjustment range	1.5...10 x Ir
Short-time protection delay adjustment type tsd	Adjustable
[tsd] Short-time protection delay adjustment range	0…0.4 s I²t=off 0.1…0.4 s I²t=on
Instantaneous protection pick-up adjustment type Ii	Adjustable
[Ii] instantaneous protection pick-up adjustment range	1.5...11 x In Compact NSX630
Ground-fault protection pick-up adjustment type Ig	Adjustable
[Ig] ground-fault protection pick-up adjustment range	0.2...1 x In
Ground-fault protection time delay adjustment type tg	Adjustable
earth-leakage protection	Without
Neutral protection settings	0.5 x Ir (3t + N/2) 1 x Ir (4t) 1.6 x Ir (3t + OSN) No protection (3t)
zone selective interlocking ZSI	With
local signalling	Flashing LED (green) for ready to operate LED 105 % Ir (red) for overload LED 90 % Ir (orange) for overload
display type	LCD display
type of measurement	Energy meter
communication of data	Time-stamped histories and event tables Maximeters/minimeters Protection and alarm settings Power quality Energy metering Instantaneous and demand values Maintenance indicators Demand current and power
electrical data recording	Maintenance indicators

Environment
standards	EN/IEC 60947-2 UL 508
product certifications	Marine EAC CCC
pollution degree	3 conforming to IEC 60947-1
IP degree of protection	IP40 conforming to IEC 60529
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…85 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	1.825 kg
Package 1 Height	13.7 cm
Package 1 width	17.7 cm
Package 1 Length	21.5 cm
Unit Type of Package 2	S04
Number of Units in Package 2	10
Package 2 Weight	18.92 kg
Package 2 Height	30 cm
Package 2 width	40 cm
Package 2 Length	60 cm

Complementary

Long-time pick-up adjustment type Ir (thermal protection)
Adjustable 9 settings

[Ir] long-time protection pick-up adjustment range
250...630 A

Long-time protection delay adjustment type tr
Adjustable

[tr] long-time protection delay adjustment range
15…400 s at 1.5 x Ir
0.35…11 s at 7.2 x Ir
0.5…16 s at 6 x Ir

thermal memory
20 minutes before and after tripping

Short-time protection pick-up adjustment type Isd
Adjustable

[Isd] Short-time protection pick-up adjustment range
1.5...10 x Ir

Short-time protection delay adjustment type tsd
Adjustable

[tsd] Short-time protection delay adjustment range
0…0.4 s I²t=off
0.1…0.4 s I²t=on

Instantaneous protection pick-up adjustment type Ii
Adjustable

[Ii] instantaneous protection pick-up adjustment range
1.5...11 x In Compact NSX630

Ground-fault protection pick-up adjustment type Ig
Adjustable

[Ig] ground-fault protection pick-up adjustment range
0.2...1 x In

Ground-fault protection time delay adjustment type tg
Adjustable

earth-leakage protection
Without

Neutral protection settings
0.5 x Ir (3t + N/2)
1 x Ir (4t)
1.6 x Ir (3t + OSN)
No protection (3t)

zone selective interlocking ZSI
With

local signalling
Flashing LED (green) for ready to operate
LED 105 % Ir (red) for overload
LED 90 % Ir (orange) for overload

display type
LCD display

type of measurement
Energy meter

communication of data
Time-stamped histories and event tables
Maximeters/minimeters
Protection and alarm settings
Power quality
Energy metering
Instantaneous and demand values
Maintenance indicators
Demand current and power

electrical data recording
Maintenance indicators

Environment

standards
EN/IEC 60947-2
UL 508

product certifications
Marine
EAC
CCC

pollution degree
3 conforming to IEC 60947-1

IP degree of protection
IP40 conforming to IEC 60529

ambient air temperature for operation
-25…70 °C

ambient air temperature for storage
-40…85 °C

Packing Units

Unit Type of Package 1
PCE

Number of Units in Package 1
1

Package 1 Weight
1.825 kg

Package 1 Height
13.7 cm

Package 1 width
17.7 cm

Package 1 Length
21.5 cm

Unit Type of Package 2
S04

Number of Units in Package 2
10

Package 2 Weight
18.92 kg

Package 2 Height
30 cm

Package 2 width
40 cm

Package 2 Length
60 cm
