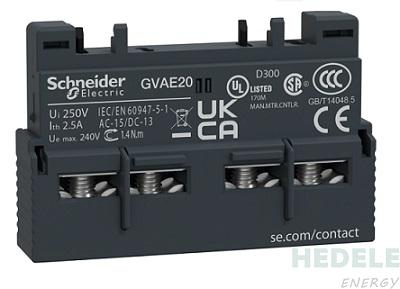

GVAE20
delivery time：2-3Weeks
|
Product series |
TeSys |
|
Product short name |
GVAE |
|
product type |
Auxiliary contact module |
|
Product scope of application |
GV2L |
|
Installation position |
Front side |
|
Loop contact type |
2 NO |
|
Quantity per set |
Set of 10 |
|
Rated insulation voltage [UI] |
300 V to UL 508 300 V to CSA c22.2 No 14 250 V in accordance with IEC 60947-1 |
|
Rated working voltage [UE] |
24...240 V AC |
|
Agreed heating current [ith] |
2.5 A |
|
Protection type |
GG fuse 10 A GB2cb06 circuit breaker 10 A |
|
Mechanical life |
100000 times |
|
Minimum switching current [Imin] |
5 mA |
|
Minimum switching voltage |
17 V |
|
Rated operating power (VA) |
120 VA on 110... 120 V ac-15 electrical life: 100000 times 120 VA on 230... 240 V ac-15 electrical life: 100000 times 48 VA on 24 V ac-15 electrical life: 100000 times 60 VA on 48 V ac-15 electrical life: 100000 times |
|
Rated operating power (W) |
15 W 48 V dc-13 on... Electrical life: 100000 times 24 w 24 V dc-13 on... Electrical life: 100000 times 9 w on... 60 V dc-13 electrical life: 100000 times |
|
Tightening torque |
1.4 N.m is fastened by bolts |
|
height |
11 mm |
|
width |
45 mm |
|
depth |
29 mm |
|
Product weight |
0.02 kg |
