ZLL

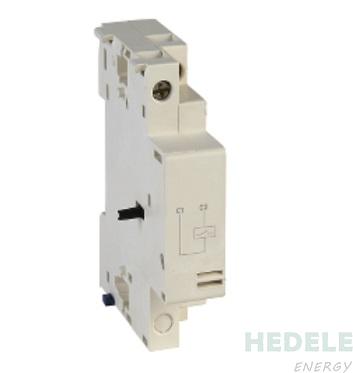

GVAS 226
delivery time：2-3weeks
|
Product series |
TeSys |
|
Product short name |
GVAS |
|
product type |
Shunt trip |
|
Scope of application |
GV2ME |
|
Control loop voltage |
220...240 V AC 60 Hz |
|
Control voltage limit |
0.7...1.1 Un |
|
Rated insulation voltage [UI] |
690 V AC'31526;'21512IEC 60947-1 600-V AC-31526;- 21512UL 60947-4-1 600-V AC-31526;- 21512DIN 3852-Y |
|
Trip voltage threshold |
0.75...0.2 Un |
|
(~ 50Hz pull in) power consumption (VA) |
14 VA AC |
|
Surge power (W) |
10.5 W |
|
(~ 50Hz hold) power consumption (VA) |
5 VA AC |
|
Holding power consumption (W) |
1.6 W |
|
Action time |
10... 15 ms according to IEC 60947-1 |
