350-040-003 VDO oil pressure gauge
1
  • 350-040-003 VDO oil pressure gauge
2
views: 1047

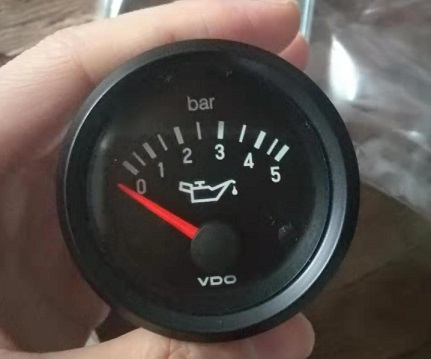

350-040-003 VDO oil pressure gauge

Rate:
0.0000/5

( 0 reviews )

Item NO.: V023706 MOQ: 0
Weight:    0kgs
Package Size:
 Price:
$50.00
 Qty:
      $50.00
 Shipping:   Calculate Shipping Cost

350-040-003 VDO oil pressure gauge

delivery time:in stock



[VDO common instrument and sensor]
Name Specifications Measuring range   Alarm value Connection thread
Oil pressure gauge 350-040-003 0-5bar 24V Pointer
Oil pressure sensor 360-081-029-004 0-5bar / 2001/8/27
Oil pressure sensor 360-081-062-002 0-5bar 0.4 ± 0.2 M14X1.5
Oil pressure gauge 350-030-004C 0-10bar 12 volts Pointer
Oil pressure gauge 350-040-017C 0-10bar 24 volts Pointer
Oil pressure sensor 360-081-029-012C 0-10bar / 2001/8/27
Oil pressure sensor (for ships) 360-081-032-014 0-10bar Enclosure is not grounded 2001/8/27
Oil pressure sensor with alarm 360-081-030-015C 0-10bar 0.8 ± 0.3 2001/8/27
With alarm oil pressure sensor 360-081-030-138C 0-10bar 1.25 + 0.3 2001/8/27
Oil pressure gauge 350-040-005 0-25bar 24V Pointer
Oil pressure sensor 360-081-038-001 0-25bar / M14X1.5
Oil pressure sensor 360-081-037-010 0-25bar / 2001/8/27
Water temperature gauge 310-030-002C 120℃  12 volts Pointer
Water temperature gauge 310-040-002C 120℃ 24 volts Pointer
Water temperature gauge 310-040-015 150℃  24V Pointer
Temperature Sensor  323-801-001-010N 120℃  2001/2/14
With alarm temperature sensor 323-803-001-019D 120℃  95 ± 3 2001/2/14
With alarm temperature sensor 323-803-001-025 120℃  103 ± 3 2001/2/14
With alarm temperature sensor 323-803-001-008D 120℃  110 ± 3 M14x1.5
With alarm temperature sensor 323-803-004-002 120℃  105 ± 3 M14x1.5
Oil temperature gauge 310-040-003G 50~150℃ 24V
Oil temperature sensor 323-801-004-002 0-150℃  / M14X1.5
Oil temperature sensor 323-803-002-007 0-150℃ 130 ± 3 M14X1.5
Oil temperature gauge 310-040-013C 40~120℃  24V Pointer
Voltmeter  332-030-001 8-16V 12V Pointer
Voltmeter 332-040-001C 18~32V 24V Pointer
Voltmeter 332-030-001 0~16V 12V Pointer
Oil level gauge 301-040-002 24V Pointer
Hour meter 331-810-012-001 Universal
Tachometer 333-035-010X 0 ~ 3000 rpm 80mm
